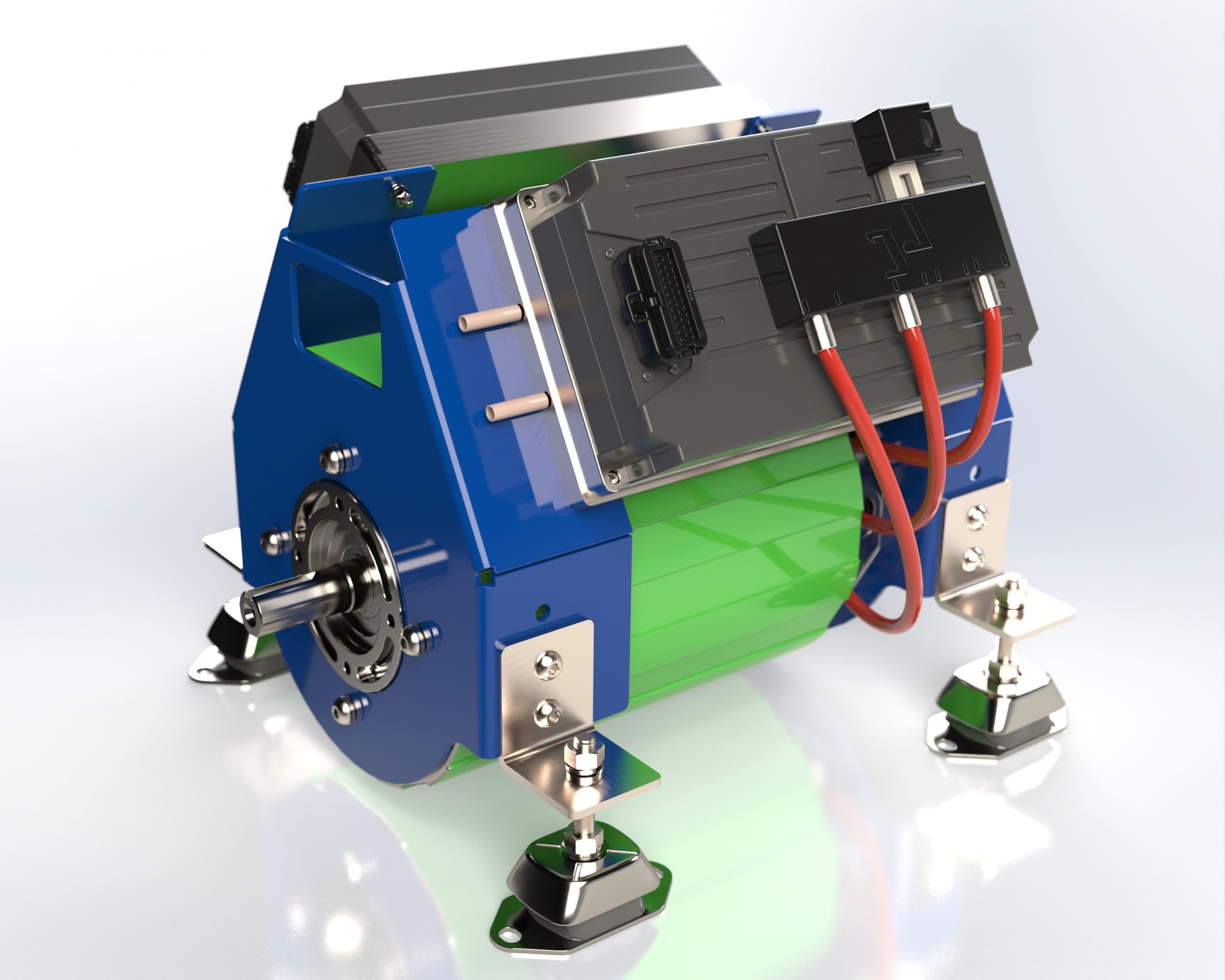

Direct Drive 20
The largest of the three motors in our *DD* range, popular on the canal scene in the largest wide beams and adventurous 60ft narrows.
Liquid cooling for a longer life, higher efficiency, and best performance.
Mounted on a steel frame with adjustable mounts allows the unit to fit into a range of different engine bearers when converting. Or for production and new builds we have designed the feet around standard 370mm centres.
Controlled from an electric throttle and key switch through a lightweight and slim harness with minimal limit on length.
Free UK shipping on all orders
Specification
RPM range
0 - 4000
Continuous power
22kW @ 1750RPM
Peak power
40kW @ 1400RPM
Up to 5 mins
Continuous torque
123Nm
Peak torque
298Nm
Voltage
40 - 60V DC
Efficiency
92%
Cooling type
Liquid cooled
Downloads
Technical Drawings
Powerful, safe, UKCA assured
High safety assurance with built in safety programmed into every controller. This prevents damage if the system is slammed from forward – reverse, overheat shut down and restart, stall torque to prevent damage to prop and hull if obstructed, over speed protection if run out of the water or propeller ventilation occurs.
Throughout design and manufacture we work to ISO 16315 ensuring the product meets the safety standards customers deserve. We continually look at improving our methods and designs, for product safety and environmental efficiency.
What's in the Box
We provide the core components to get setup, you’ll need some extra parts however to have a fully functioning system.
Key switch
Motor unit
Throttle
What else you’ll need
You will need a few extra components to get up and running. Here are the minimum requirements to get going.
Battery
Fastenings
Cables + Accessories
Chargers (AC 230V)
Battery monitor
