Direct Drive 10

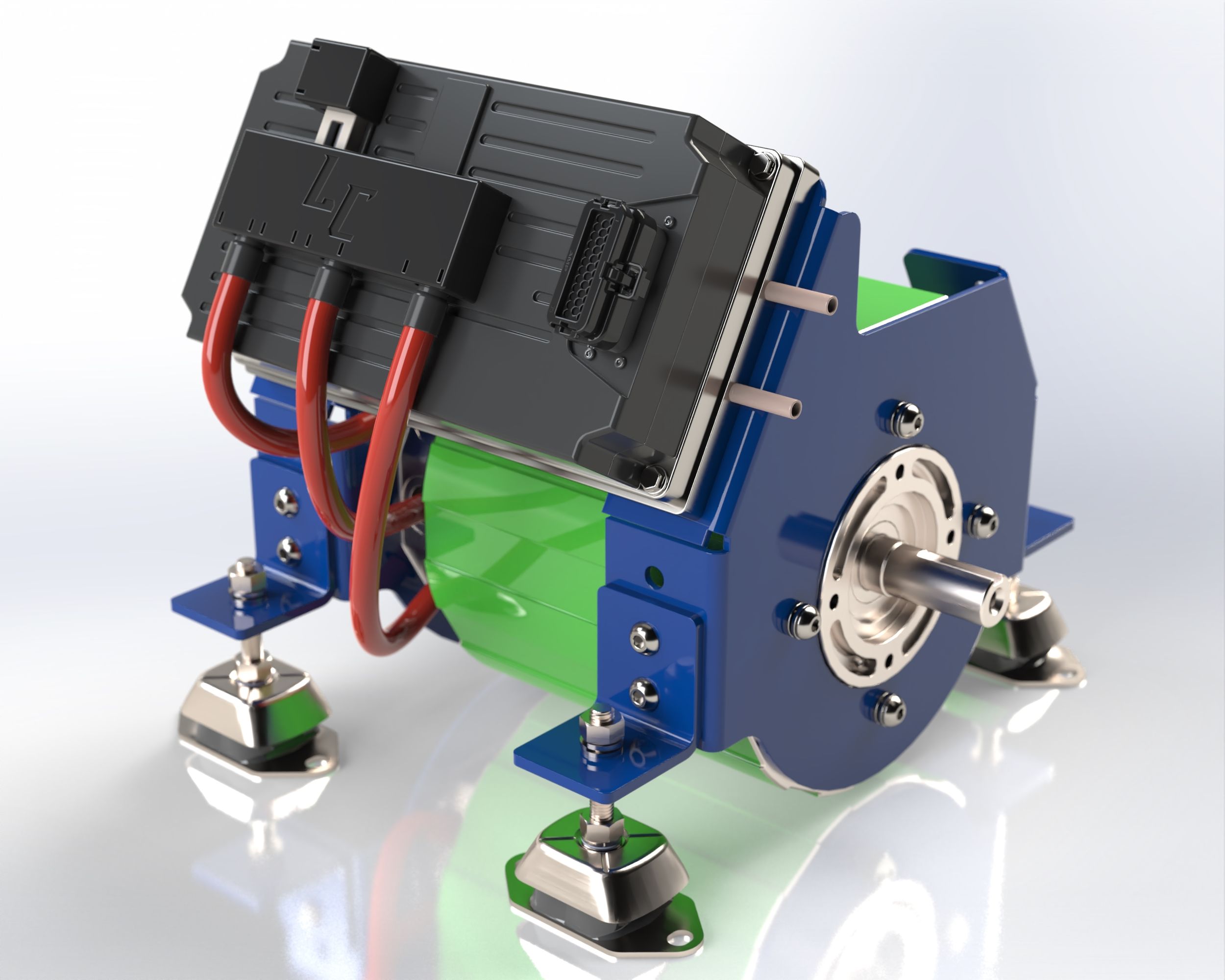

These motors are a liquid cooled and operate on 48V DC. Liquid cooling allows them to be highly efficient, long lasting and high performing.
Mounted on a steel frame with adjustable mounts, allows the unit to fit into a range of different engine bearers when converting.
Controlled from an electric throttle and key switch, bulky and stiff engine and gear leavers are a thing of the past.
Free UK shipping on all orders
Specification
RPM range
0 - 3000
Continuous power
12kW @ 1320RPM
Peak power
17kW @ 1000RPM
Up to 5 mins
Continuous torque
81Nm
Peak torque
188Nm
Efficiency
90%
Voltage
40 - 60V DC
Cooling type
Liquid cooled
Downloads
Technical Drawings
Powerful, safe, UKCA assured
High safety assurance with built in safety programmed into every controller. This prevents damage if the system is slammed from forward – reverse, overheat shut down and restart, stall torque to prevent damage to prop and hull if obstructed, over speed protection if run out of the water or propeller ventilation occurs.
Throughout design and manufacture we work to ISO 16315 ensuring the product meets the safety standards customers deserve. We continually look at improving our methods and designs, for product safety and environmental efficiency.
What's in the Box
We provide the core components to get setup, you’ll need some extra parts however to have a fully functioning system.
Key switch
Motor unit
Throttle
What else you’ll need
You will need a few extra components to get up and running. Here are the minimum requirements to get going.
Battery
Fastenings
Cables + Accessories
Chargers (AC 230V)
Battery monitor
